3.0Micron PP Pleated Filter Cartridge for Water Treatment
Basic Info
Model No.: 3.0Micron 10'' PP Pleated Filter Cartridge for Water Treatment
Product Description
PP Pleated Filter Cartridge Description

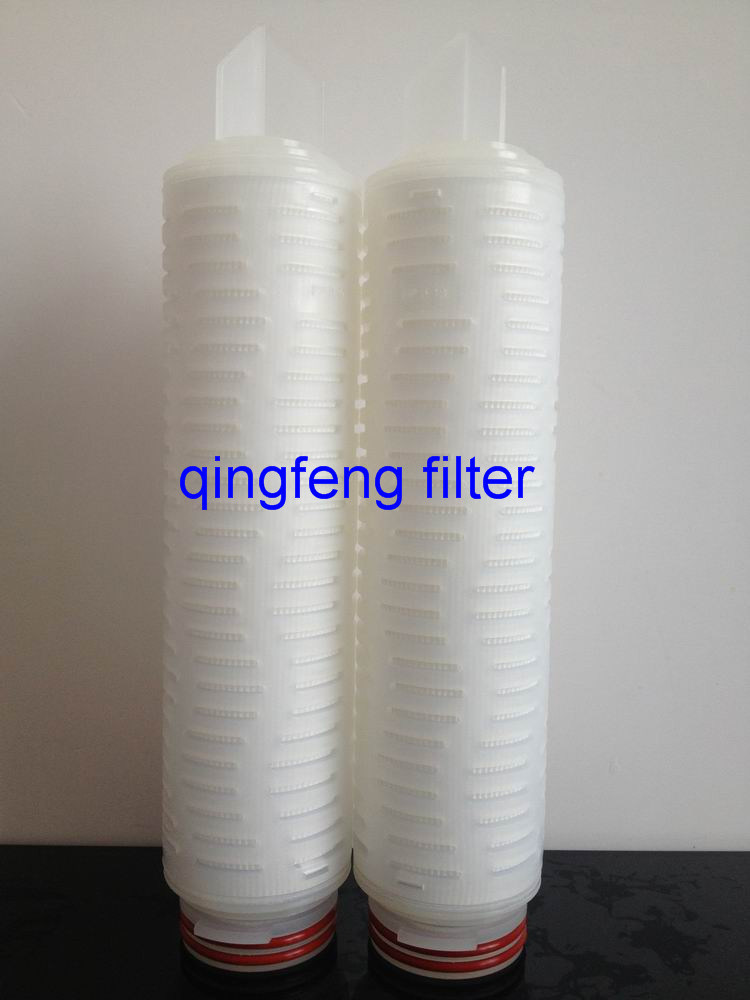

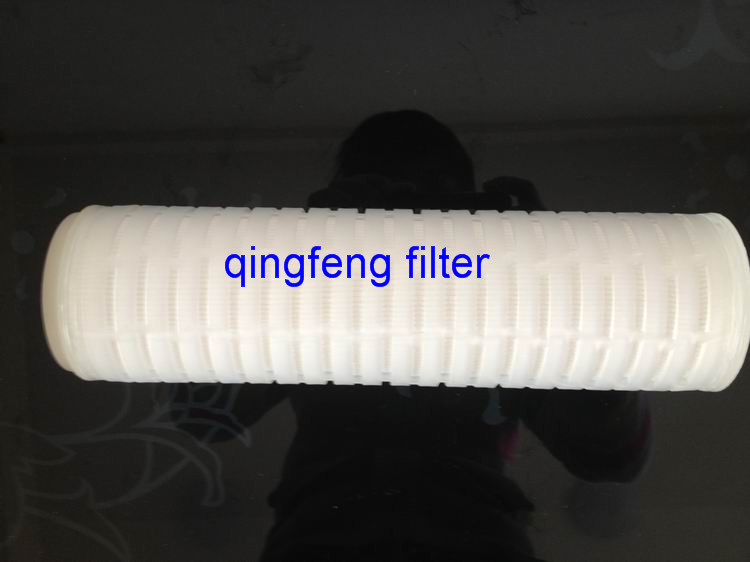

PP Pleated Filter Cartridge
PP pleated filter cartridge is made of pleated polypropylene membrane, polypropylene non-woven fabrics and polypropylene cage. During the production, it is purity, free of surfactants, resins, binders and adhesives. It can be used for the liquid and gas prefiltration and clarification. The PP pleated filter cartridge has a uniform pore size distribution, high flow rate and large contaminant retention. Polypropylene is used in many fields due to its wide chemical compatibility.
Main Characteristics:
1.100% high quality polypropylene material
2. Wide chemical compatibility
3. High flow rate
4. Low differential pressure
5. High dirt holding capacity
6. High nominal filtration precision
7. Long using life
8. Economical choice for the prefiltration and guard filtration before critical filtration
9. Board range of micron ratings
10. Suitable for water filtration
11. Meet the current FDA after cleaned and flushed with Pyrogen-free water
Micron Rating(µm):
0.10 0.20 0.45 1.0 3.0 5.0 10.0 20.0 40.0 50.0 100.0
Typical Applications:
1. Pharmaceuticals, APIs, Biologics; Solvent; Compressed air filtration
2. Plating solutions, Ink
3. Fine Chemicals
4. Food & Beverages, Wine, Beer, Mineral Water
5. Semi-Conductor, LCD Display, Discs, R.O. prefiltration
6. Clarification of waste water treatment
Specifications:
Filter medium | PP membrane |
Support Layer | Polypropylene |
Inner Core | Polypropylene |
Outer Core | Polypropylene |
Outer Diameter | 68mm |
Inner Diameter | 33mm |
Effective Filtration Area | ≥0.60m2 |
Normal Operating Temperature | ≤55ºC |
Max. Operating Temperature | 80ºC(△P≤0.10Mpa) |
Max. Differential Pressure | Normal Flow direction:4.2 bar at 25ºC, Reverse Flow direction: 2.1 bar at 25ºC |
PH Value compatibility | 1-13 |
Sterilizing temperature | Steam Sterilization for 30 minutes at 121±2ºC |
Endotoxin | <0.25 EU/ml |
Extractable | 0.03g/10" |
Remark: special requirement of diameter and end caps can be customized | |
Complete test (minimum bubble point)(25ºC;95% isopropanol): | |
0.10um | ≥0.024Mpa |
0.20um | ≥0.016Mpa |
0.45um | ≥0.012Mpa |
ABOUT US:

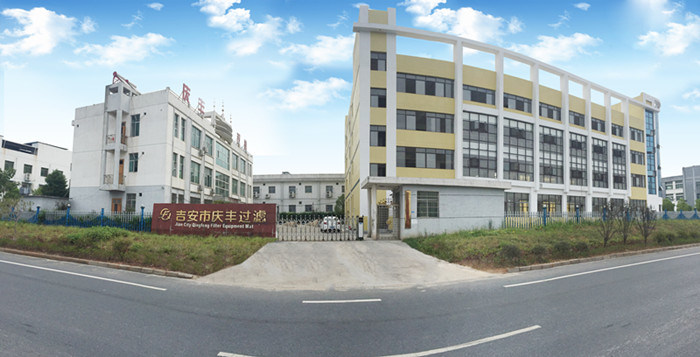

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
Contact us if you need more details on High Flow Pleated Filter Cartridge. We are ready to answer your questions on packaging, logistics, certification or any other aspects about PP Spun Filter Cartridge 5 Mmicron、Code 7 Filter Cartridge. If these products fail to match your need, please contact us and we would like to provide relevant information.
Product Categories : Micropore Filter Cartridge > PP Pleated Filter Cartridge
